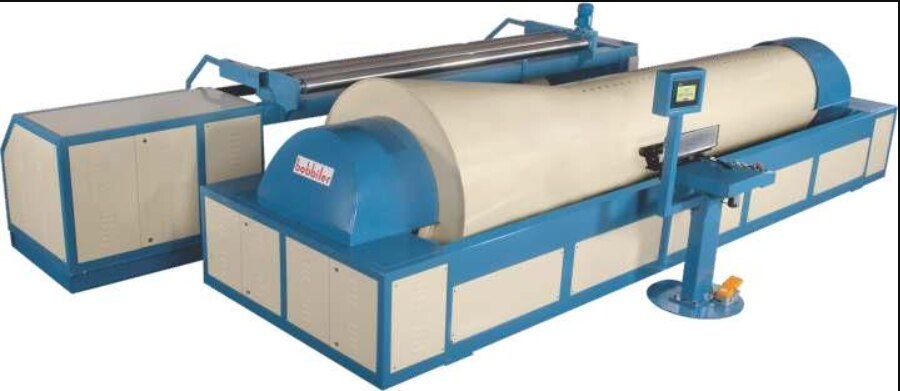

Sectional Warping Machine Special Features of the Advanced Computerized Sectional Warping Machine: Auto Advance Warp Table: The Advanced Computerized Sectional Warping Machine is engineered for precision with an auto-advancing warp table. Crossing and warping combs are optimally aligned to ensure the yarn travels in a straight path from the creel to the drum, minimizing angles and bends. The warping comb is positioned close to the drum for exact control over section width. As yarn builds up on the drum, the comb adjusts automatically, maintaining a consistent distance throughout the process. Upon section completion, the machine resets to its home position with an accuracy of 0.1 mm, ready for the next section. Touch Screen Display: This Sectional Warping Machine features a user-friendly color touchscreen interface. A visible signal tower alerts operators of drum stoppages due to thread breaks, completed lengths, or system errors including software, hardware, or electrical issues. Disc Brakes: A specially designed hydraulic disc brake system delivers precise and immediate stopping. It absorbs any brake drum irregularities, ensuring consistent yarn tension during the beaming process — a key aspect of the Advanced Computerized Sectional Warping Machine. Beam Tension Control: Developed by 'Bobbiler', this tension control system helps create perfect weaver beams for maximum loom efficiency. Separate pressure relief valves for warping and beaming allow manual tension adjustment of the yarn sheet as needed. Leasing Device: The leasing system on this Sectional Warping Machine prevents yarn entanglement. Yarn layers pass through the crossing and guide combs in an open state directly to the drum. The wide crossover area simplifies cord placement, and vertical comb movement ensures smooth crossover formation. Beaming Device: The Advanced Computerized Sectional Warping Machine includes a durable beaming unit capable of handling heavy warp beams. Dual support drives ensure synchronized starting, while individual or linked movement allows precise beam alignment. Beaming speed is adjustable up to 100 m/min. Salient Features of the Sectional Warping Machine: Solid, dynamically balanced metallic drum with fixed cone height. Heavy-duty separate frames for warping and beaming functions. Motorized beaming unit for efficient positioning. Variable AC frequency drive with full servo and PLC control. Precision servo control for warp table traverse, cross motion, and headstock synchronization. Accurate warp length measurement with lost end memory. Auto section advancement for improved efficiency. Steady warping and beaming speeds throughout the process. Intuitive operational panel with full-color touch display for monitoring and control. High-performance hydraulic disc brakes on both sides with power-failure safety. Hydraulic doffing and donning system for beam handling.
